FEULING OIL PUMP CORP. High Load Beehive® Spring Kit High Load Beehive® Spring Kit
Regular price $559.95 USD
Category:
- Drag part number: 0926-3138
- Manufacturer Number: 1207
- Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
- FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs.
- Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

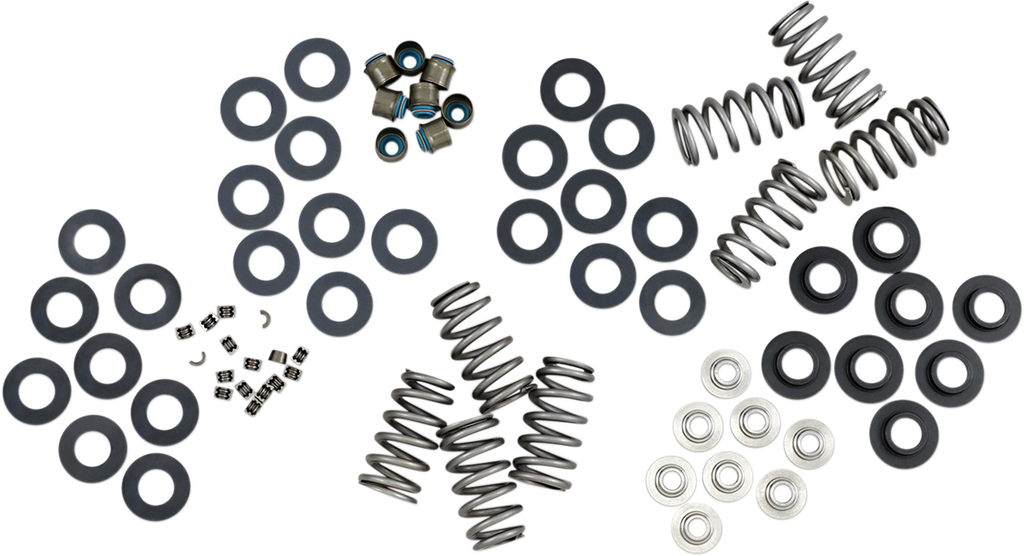

- Kits include: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
- ONLY recommended for large lift camshafts and RACE style engines as these valvesprings if not set properly will create extreme rocker arm deflection
- Seat lbs./Installed Height
- 151 Lbs. @ 1.475 (0.485 Lift)
- 144 Lbs. @ 1.498 (0.508 Lift)
- 143 Lbs. @ 1.501 (0.511 Lift)
- 140 Lbs. @ 1.511 (0.521 Lift)
- 124 Lbs. @ 1.562 (0.578 Lift)
- 120 Lbs. @ 1.582 (0.592 Lift)
- 304 Lbs @ 0.990 OPEN HEIGHT
- Coil Bind @ .945
- Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
- Product Name: Spring Kit
- Type: Valve
- Style: Ovate Wire Beehive
- Model: High-Load Beehive
- Units: Kit
- Riding Style: Street
2017-2020 | Harley-Davidson | Electra Glide Police FLHTPI |
2017-2019 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI |
2017-2019 | Harley-Davidson | Electra Glide Ultra Limited FLHTK |
2017-2019 | Harley-Davidson | Road King EFI FLHR |
2017-2019 | Harley-Davidson | Street Glide EFI FLHX |
2017-2019 | Harley-Davidson | Road Glide Custom FLTRX |
2017-2019 | Harley-Davidson | Road Glide Ultra FLTRU |
2018-2019 | Harley-Davidson | Softail Breakout FXBR |
2018-2020 | Harley-Davidson | Softail Breakout 114 FXBRS |
2018-2019 | Harley-Davidson | Softail Deluxe FLDE |
2018-2019 | Harley-Davidson | Softail Fat Boy FLFB |
2018-2019 | Harley-Davidson | Softail Fat Boy 114 FLFBS |
2018-2019 | Harley-Davidson | Softail Heritage Classic FLHC |
2018-2019 | Harley-Davidson | Softail Heritage Classic 114 FLHCS |
2017-2019 | Harley-Davidson | Street Glide Special FLHXS |
2017-2019 | Harley-Davidson | CVO Street Glide FLHXSE |
2017-2019 | Harley-Davidson | Electra Glide Ultra Limited Low FLHTKL |
2017-2019 | Harley-Davidson | Road Glide Special FLTRXS |
2017-2019 | Harley-Davidson | Road King Special FLHRXS |
2017-2019 | Harley-Davidson | CVO Electra Glide Ultra Limited FLHTKSE |
2018-2019 | Harley-Davidson | Softail Fat Bob FXFB |
2018-2019 | Harley-Davidson | Softail Fat Bob 114 FXFBS |
2018-2019 | Harley-Davidson | Softail Low Rider FXLR |
2018-2019 | Harley-Davidson | Softail Sport Glide FLSB |
2019 | Harley-Davidson | FXDR 114 |
2019 | Harley-Davidson | Electra Glide Standard EFI FLHTI |
2018-2020 | Harley-Davidson | CVO Road Glide Custom FLTRXSE |
2018-2019 | Harley-Davidson | Softail Slim FLSL |
2018-2020 | Harley-Davidson | Softail Street Bob FXBB |
